Epson EB-L630SU 6,000-Lumens WUXGA 3LCD Short-Throw Laser Projector

Bright Short-Throw Laser Projector

The Epson EB-L630SU is a high-performance short-throw laser projector designed for classrooms, meeting rooms, training spaces, museums, retail displays, and other environments where a large image is needed in limited space. It delivers 6,000 lumens of colour and white brightness, WUXGA resolution, 3LCD imaging, HDR support, and a long-life laser light source for bright, detailed, and dependable projection.

With a 0.80–1.07:1 throw ratio, wide lens shift, built-in wireless connectivity, HDBaseT support, and a 10W speaker, the EB-L630SU is an excellent choice for professional installations where the projector must be positioned close to the screen.

6,000 Lumens of Bright Output

The Epson EB-L630SU delivers up to 6,000 lumens of white brightness and 6,000 lumens of colour brightness. This high brightness makes it suitable for bright rooms, large classrooms, boardrooms, lecture spaces, and commercial environments where the projector must produce a clear image on a large screen.

In economy mode, the projector provides up to 4,200 lumens of brightness, giving users flexibility to balance brightness, power consumption, and light-source life according to the room and application.

WUXGA Resolution for Sharp Images

The EB-L630SU features native WUXGA resolution of 1920 × 1200 pixels with a 16:10 aspect ratio. This widescreen format provides additional vertical workspace compared with standard 16:9 displays, making it useful for presentations, spreadsheets, documents, design work, and detailed visual content.

The projector supports 4K input signals, allowing users to connect modern media players, laptops, and professional video equipment. It also supports 10-bit colour processing and can reproduce up to 1.07 billion colours for smooth colour transitions and detailed image quality.

3LCD Technology and HDR Support

Epson’s 3LCD projection system uses three LCD panels to process red, green, and blue light independently. This design helps deliver bright, colour-rich images with strong clarity and smooth on-screen performance.

The projector supports HDR content, helping improve contrast, colour depth, and detail in compatible video material. With dynamic contrast enabled, it can achieve a contrast ratio of up to 2,500,000:1, supporting deeper blacks and more engaging visuals in dark scenes.

Short-Throw Projection for Tight Spaces

The EB-L630SU features a short-throw lens with a throw ratio of 0.80:1 in wide zoom and 1.07:1 in telephoto zoom. This allows the projector to create a large image from a relatively short distance, making it ideal for rooms where mounting space is limited.

For example, it can project an 80-inch screen from approximately 1.38 metres away. This short-throw design helps reduce shadows on the screen and makes the projector suitable for classrooms, meeting rooms, interactive displays, and compact professional installations.

Long-Life Laser Light Source

The EB-L630SU uses a laser light source with an expected life of up to 20,000 hours in high-brightness mode and up to 30,000 hours in Eco mode. This long-lasting light source helps reduce maintenance requirements and supports dependable operation in frequently used environments.

The laser design eliminates the need for traditional lamp replacement, helping reduce ownership costs while maintaining consistent brightness over time. It is well suited to classrooms, offices, museums, and commercial installations where the projector may be used daily.

Wide Lens Shift and Keystone Correction

The projector includes a wide lens-shift range of up to ±50 percent vertically and ±20 percent horizontally. This helps installers position the projected image accurately without relying heavily on digital correction.

The EB-L630SU also supports vertical keystone correction of up to ±30 degrees and horizontal keystone correction of up to ±30 degrees. These adjustment features make it easier to install the projector in rooms where perfect centring is not possible.

Built-In Wireless and Network Connectivity

The Epson EB-L630SU includes built-in wireless LAN for convenient wireless presentation and screen sharing. It supports Miracast and is compatible with Epson’s Wireless Presentation System for flexible connectivity with laptops, tablets, and smartphones.

The projector also includes wired Ethernet, supporting network control and management protocols such as PJLink, SNMP, ESC/VP.net, HTTPS, and IPv6. This makes it suitable for larger AV installations where centralised monitoring and control are required.

Professional Connectivity Options

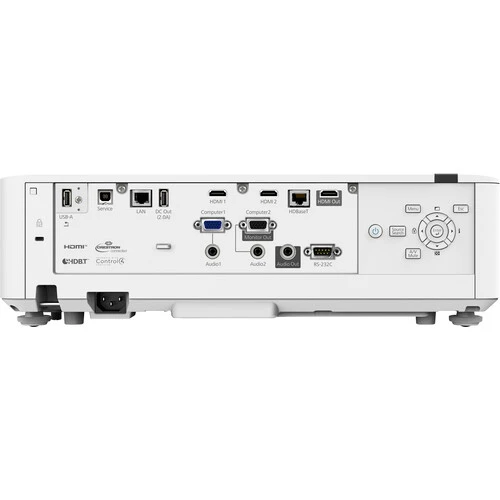

The EB-L630SU provides a broad selection of inputs and outputs for modern AV systems. It includes two HDMI inputs with HDCP 2.3 support, one HDMI output, HDBaseT connectivity, two VGA inputs, one VGA output, Ethernet, RS-232C control, and USB Type-A ports for compatible devices.

HDBaseT allows video, audio, control, and network signals to be transmitted over a single cable across longer distances, making the projector suitable for professional installations and integrated AV environments.

Built-In 10W Speaker

The projector includes a built-in 10W speaker, allowing users to deliver audio directly from the projector without immediately requiring an external sound system. This is useful for classrooms, meeting rooms, training sessions, and smaller presentation environments.

For larger rooms or professional AV setups, the EB-L630SU also includes a variable audio output for connecting external speakers or audio equipment.

Compact and Installation-Friendly Design

The Epson EB-L630SU features a white chassis measuring approximately 440 × 334 × 136 mm and weighing approximately 8.4 kg. Its compact, lightweight design makes it easier to install in ceiling systems, wall mounts, and rooms with limited installation space.

The projector operates at approximately 38 dB in normal mode and as low as 27 dB in economy mode, helping maintain a comfortable environment during presentations, lectures, and meetings.

Energy-Efficient Laser Performance

The EB-L630SU supports 100–240 V, 50–60 Hz power input and offers energy-efficient operation modes. Its power consumption is approximately 287 W in normal on-mode, 164 W in Eco on-mode, and as low as 0.3 W in energy-saving standby mode.

These efficiency features help reduce operating costs while supporting dependable performance for frequent professional use.

Ideal for Classrooms and Meeting Rooms

The Epson EB-L630SU is an excellent choice for schools, universities, offices, training rooms, boardrooms, museums, and commercial spaces that need a bright, flexible, and easy-to-install projector. Its short-throw design, high brightness, WUXGA resolution, laser light source, wireless connectivity, HDBaseT support, and built-in speaker make it suitable for presentations, lectures, training, video playback, and collaborative meetings.

Why Choose the Epson EB-L630SU?

The Epson EB-L630SU combines 6,000 lumens of colour and white brightness, native WUXGA 1920 × 1200 resolution, 3LCD technology, HDR support, up to 2,500,000:1 dynamic contrast, 10-bit colour processing, up to 1.07 billion colours, 4K input support, a 20,000-hour laser light source in high-brightness mode and up to 30,000 hours in Eco mode, 0.80–1.07:1 short-throw zoom, wide lens shift, ±30-degree keystone correction, built-in Wi-Fi, Miracast, HDBaseT, HDMI connectivity, and a 10W speaker. It is a versatile short-throw laser projector for delivering bright, detailed, and reliable large-screen images in space-constrained professional environments.
