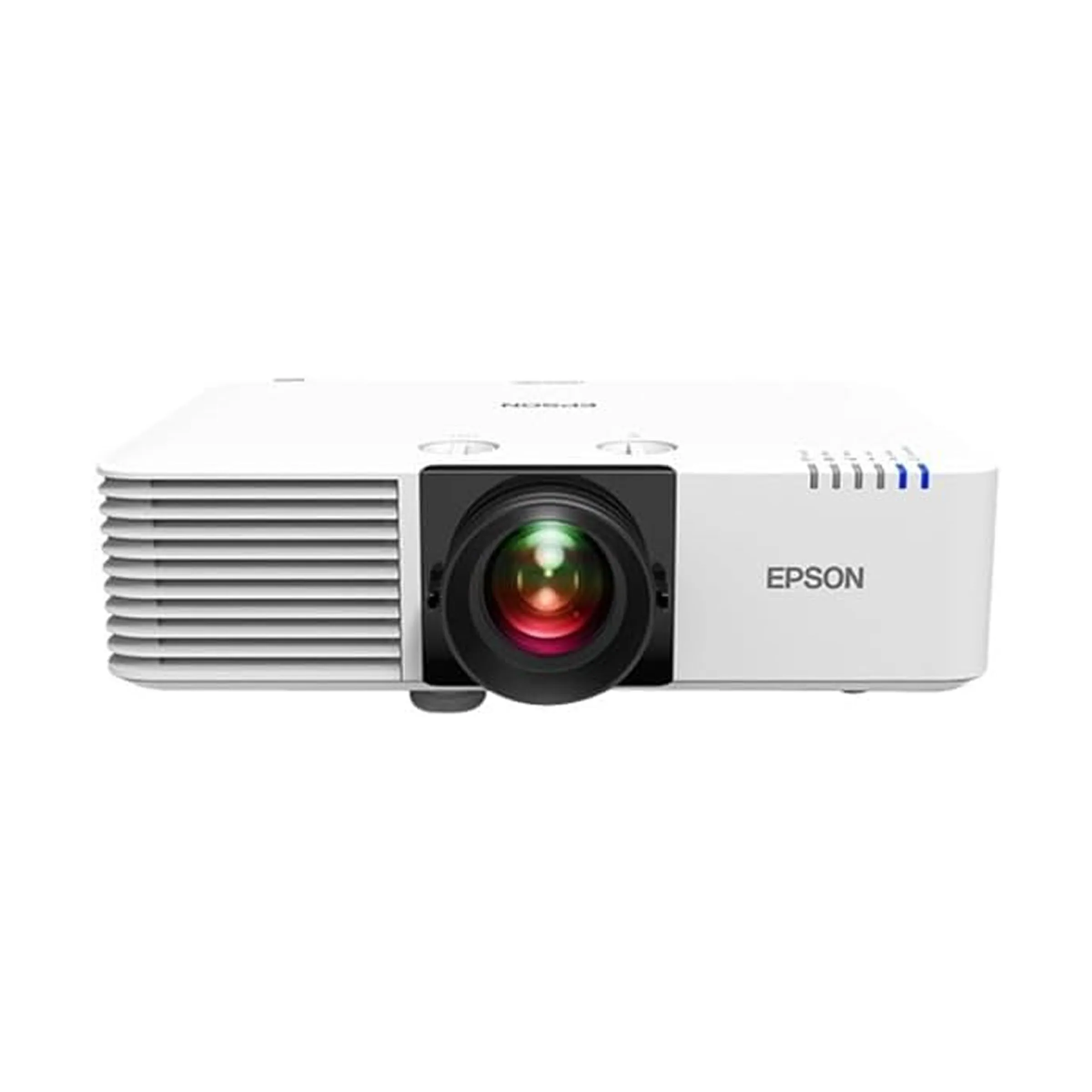

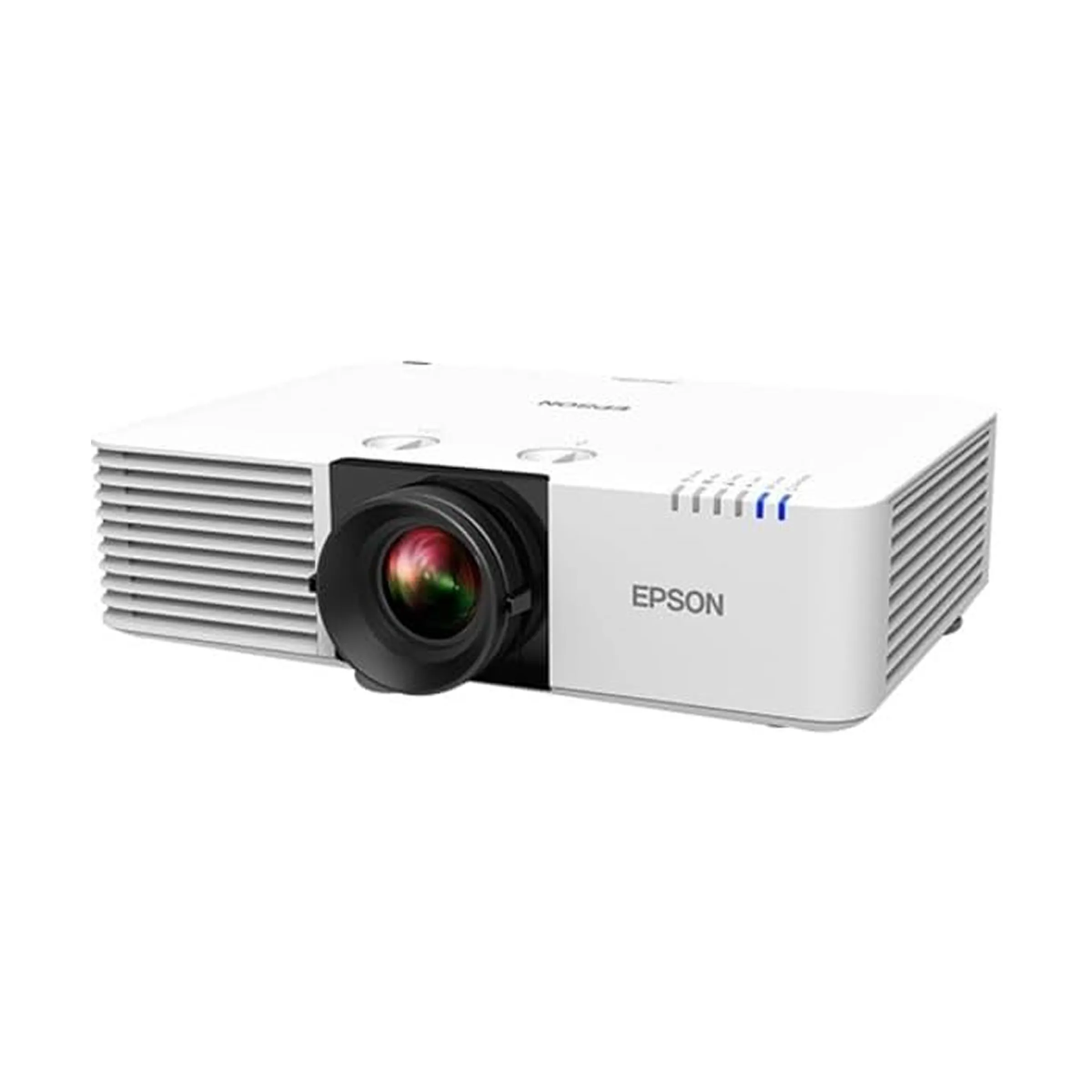

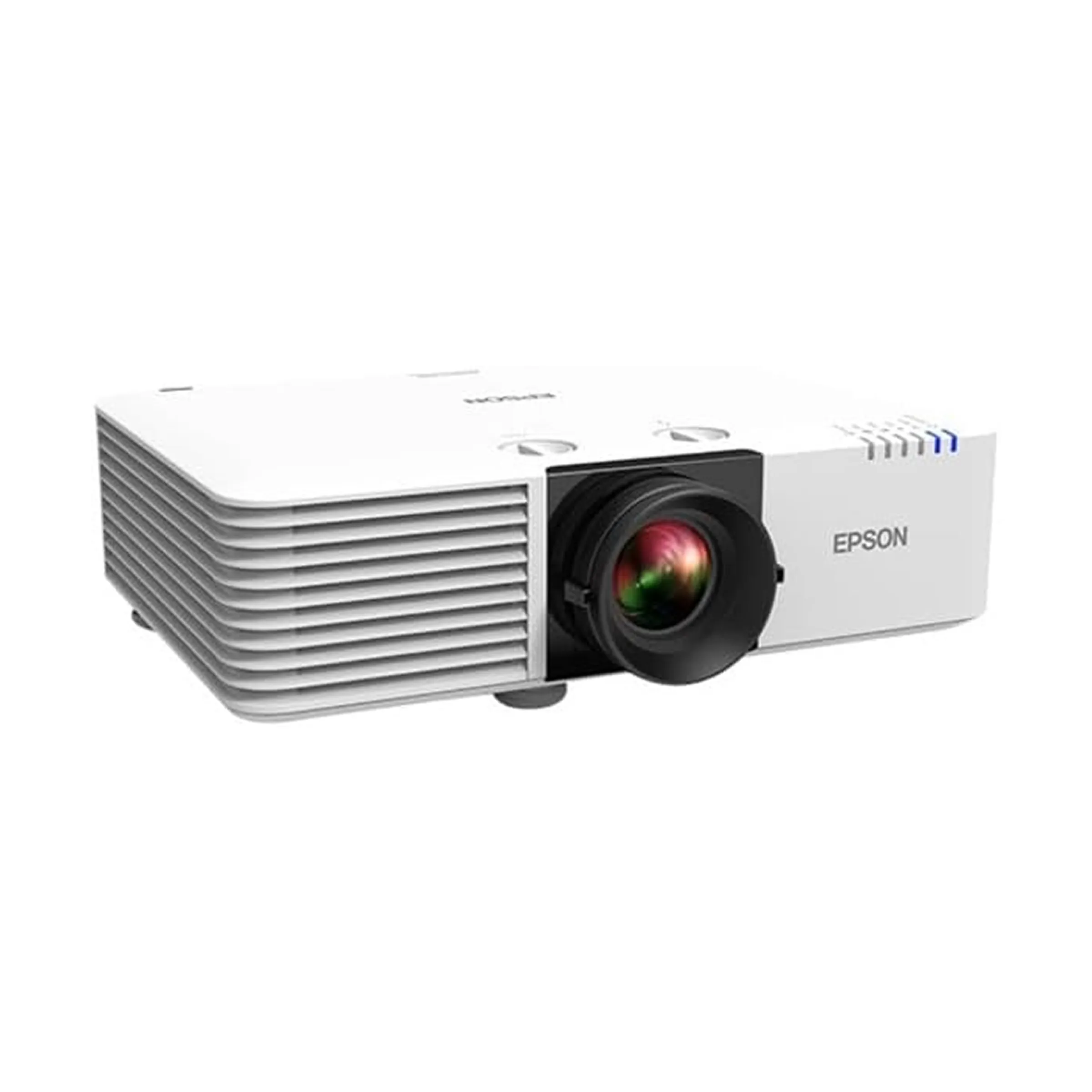

Epson EB-L570U 5,200-Lumens WUXGA Laser Projector

High-Brightness Professional Laser Projector

The Epson EB-L570U is a compact, high-brightness 3LCD laser projector designed for meeting rooms, classrooms, lecture halls, hybrid workspaces, museums, and professional presentation environments. It delivers 5,200 lumens of colour brightness and 5,200 lumens of white brightness, producing bright, detailed widescreen images even in well-lit rooms.

With native WUXGA resolution, 4K Enhancement Technology, flexible aspect-ratio support, a long-life laser light source, 1.6x optical zoom, wide lens shift, and HDBaseT connectivity, the EB-L570U is an excellent choice for businesses and educational institutions that need a versatile projector for presentations, lessons, video conferencing, and collaborative work.

5,200 Lumens of Bright Output

The Epson EB-L570U delivers 5,200 lumens of white brightness and 5,200 lumens of colour brightness. This high brightness makes it suitable for bright meeting rooms, large classrooms, lecture halls, and other professional environments where a clear image is needed on a large screen.

Its 3-chip 3LCD projection system processes red, green, and blue light independently, helping deliver vibrant colour, strong clarity, and smooth on-screen performance for presentations, video, digital content, and hybrid collaboration.

WUXGA Resolution with 4K Enhancement

The projector features native WUXGA resolution of 1920 × 1200 pixels with a 16:10 aspect ratio. Epson’s 4K Enhancement Technology shifts the image diagonally by half a pixel to deliver an enhanced on-screen resolution of 4.6 million pixels.

This helps produce finer detail, smoother edges, and a sharper image, even at close viewing distances. The EB-L570U also accepts 4K content, making it suitable for modern media players, laptops, cameras, and professional video equipment.

3LCD Technology and High Contrast

Epson’s 3LCD projection system uses three 0.67-inch C2 Fine LCD panels to process red, green, and blue light independently. This design helps deliver bright, colour-rich images with strong clarity and smooth on-screen performance.

The projector offers a dynamic contrast ratio of up to 2,500,000:1 and can reproduce up to 1.07 billion colours. This helps create deeper blacks, improved shadow detail, and more engaging visuals for presentations, video, and digital signage.

Flexible Aspect Ratios and Large Screen Sizes

The Epson EB-L570U supports multiple aspect ratios, including standard 16:10 and 16:9, as well as ultra-wide 16:6 and 21:9 formats. The 21:9 aspect ratio is especially useful for modern hybrid meeting environments, video conferencing layouts, and immersive collaborative displays.

The projector can create screen sizes from 50 to 500 inches, depending on projection distance and screen setup. This makes it suitable for small meeting rooms, large classrooms, auditoriums, and wide-format collaborative spaces.

Long-Life Laser Light Source

The EB-L570U uses a laser-diode light source with an expected life of up to 20,000 hours in normal and quiet modes, and up to 30,000 hours in extended mode. This long-lasting light source helps reduce maintenance requirements and supports dependable operation in frequently used environments.

The laser design eliminates the need for traditional lamp replacement, helping reduce ownership costs while maintaining consistent brightness over time. It is well suited to classrooms, conference rooms, museums, and other installations where the projector may be used daily.

1.6x Optical Zoom and Wide Lens Shift

The EB-L570U features a 1.6x manual optical zoom and manual focus, allowing users to adjust image size and positioning to suit different room layouts and screen sizes. Its throw ratio of 1.35–2.20:1 provides flexibility for a wide range of installation distances.

The projector supports manual lens shift with up to ±50 percent vertical adjustment and ±20 percent horizontal adjustment. This helps installers position the projected image accurately without relying heavily on digital correction.

Keystone Correction and Flexible Installation

The Epson EB-L570U includes vertical keystone correction of up to ±30 degrees and horizontal keystone correction of up to ±30 degrees. These adjustment features make it easier to install the projector in rooms where perfect centring is not possible.

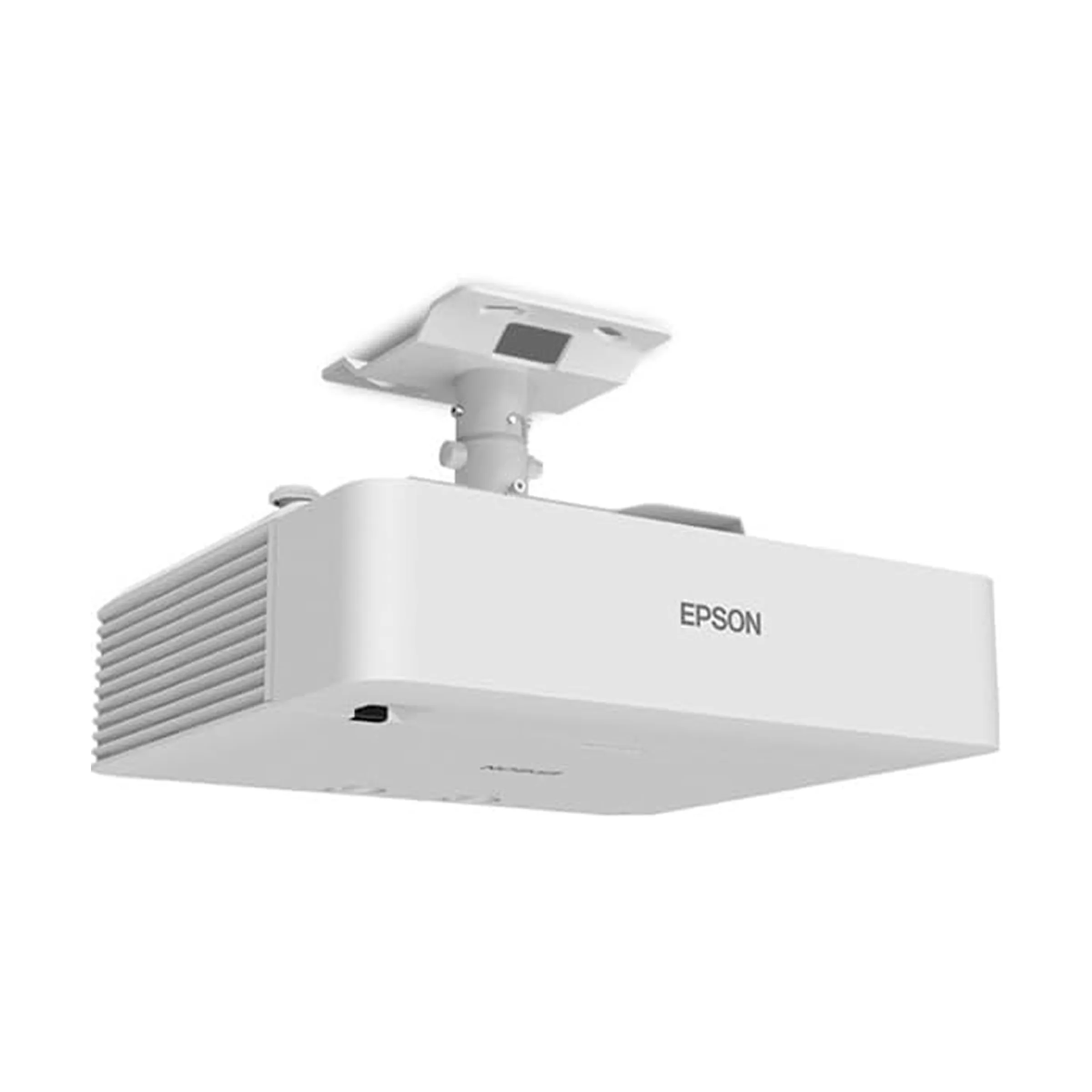

The projector supports front, rear, and ceiling installation, giving users flexibility for permanent installations, mobile AV setups, and professional presentation environments.

Built-In Wireless Connectivity

The Epson EB-L570U includes built-in wireless LAN for convenient wireless presentation and screen sharing. This makes it easier to connect compatible laptops, tablets, and smartphones without additional cables.

Wireless connectivity helps improve collaboration in classrooms, meetings, training rooms, and hybrid work environments by making it easier to share content from multiple devices.

HDBaseT and Professional Connectivity

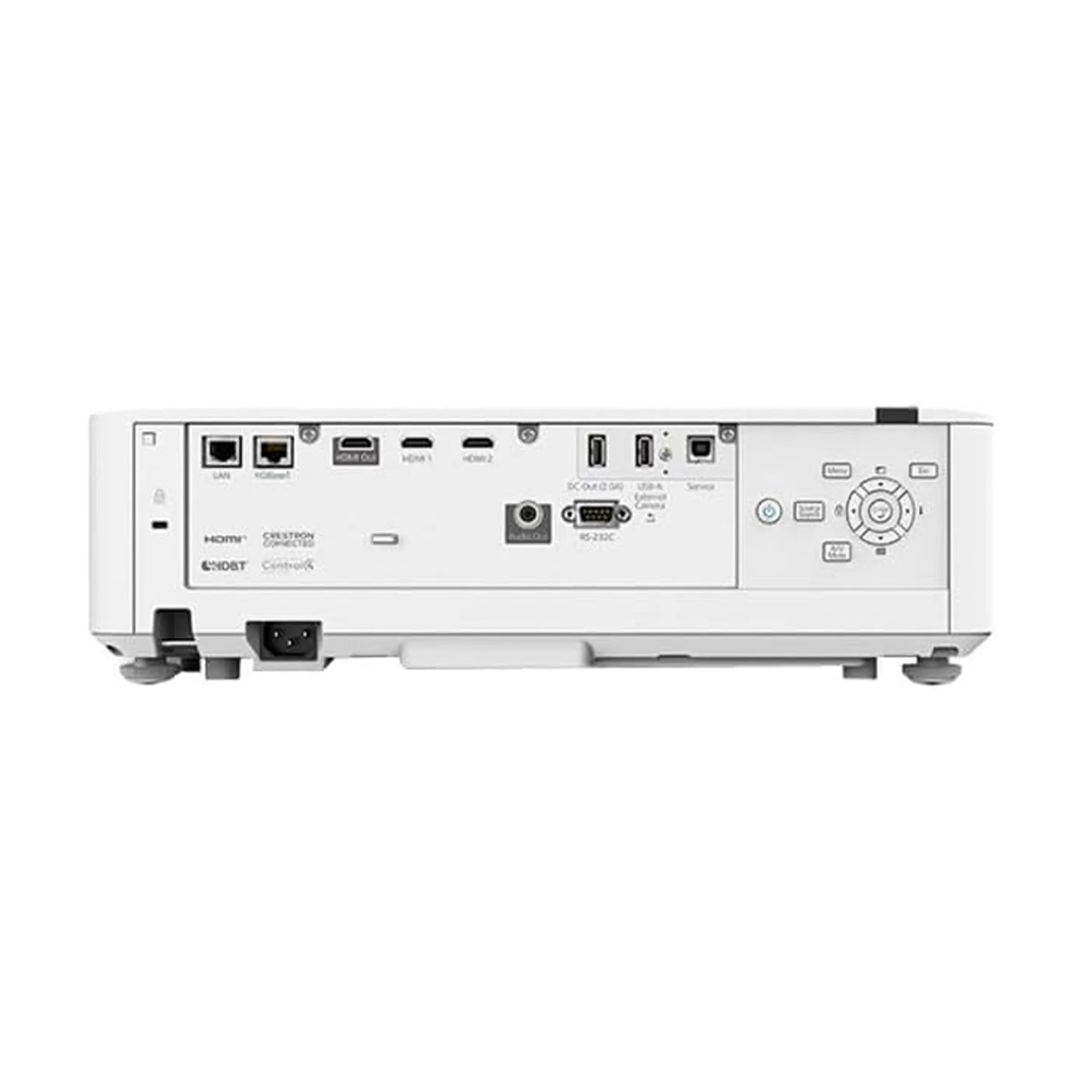

The EB-L570U provides a broad selection of inputs and outputs for modern AV systems. It includes two HDMI 2.1 inputs with HDCP 2.3 support, HDBaseT connectivity, Ethernet, RS-232C control, and two USB Type-A ports for compatible devices.

HDBaseT allows video, audio, control, and network signals to be transmitted over a single cable across longer distances, making the projector suitable for professional installations and integrated AV environments. It also supports HDMI CEC control for simplified operation with compatible devices.

Compact and Installation-Friendly Design

The Epson EB-L570U has a compact white chassis measuring approximately 440 × 304 × 122 mm and weighing approximately 8.5 kg. Its lightweight design makes it easier to install in ceiling systems, wall mounts, and rooms with limited installation space.

The projector operates at approximately 323 W in normal mode, 250 W in quiet mode, and 242 W in extended mode. Its energy-saving standby consumption is as low as 0.5 W, helping reduce operating costs during frequent professional use.

Ideal for Hybrid Work and Education

The Epson EB-L570U is an excellent choice for schools, universities, offices, conference centres, training rooms, museums, and hybrid work environments that need a bright, flexible, and easy-to-manage projector. Its high brightness, WUXGA resolution, 4K Enhancement, ultra-wide aspect-ratio support, laser light source, and HDBaseT connectivity make it suitable for presentations, lectures, video conferencing, training, and collaborative meetings.

Why Choose the Epson EB-L570U?

The Epson EB-L570U combines 5,200 lumens of colour and white brightness, native WUXGA 1920 × 1200 resolution, 4K Enhancement Technology, 3LCD 3-chip imaging, up to 2,500,000:1 dynamic contrast, up to 1.07 billion colours, image sizes from 50 to 500 inches, 16:10, 16:9, 16:6, and 21:9 aspect-ratio support, a 20,000-hour laser light source in normal mode and up to 30,000 hours in extended mode, 1.6x optical zoom, ±50 percent vertical and ±20 percent horizontal lens shift, ±30-degree keystone correction, built-in Wi-Fi, HDBaseT, dual HDMI 2.1 inputs, and flexible installation options. It is a versatile professional laser projector for delivering bright, detailed, and reliable large-screen presentations in business, education, and hybrid work environments.
