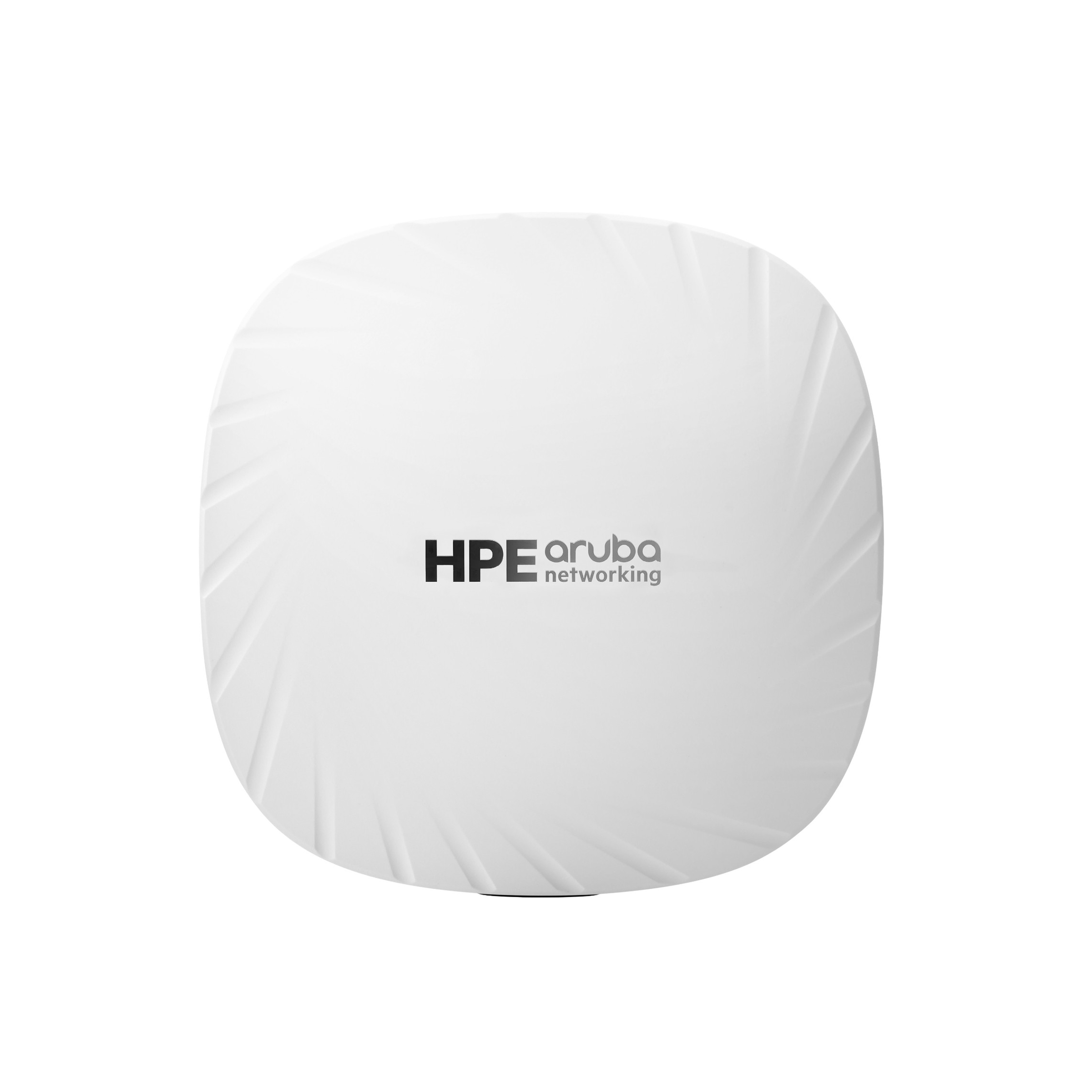

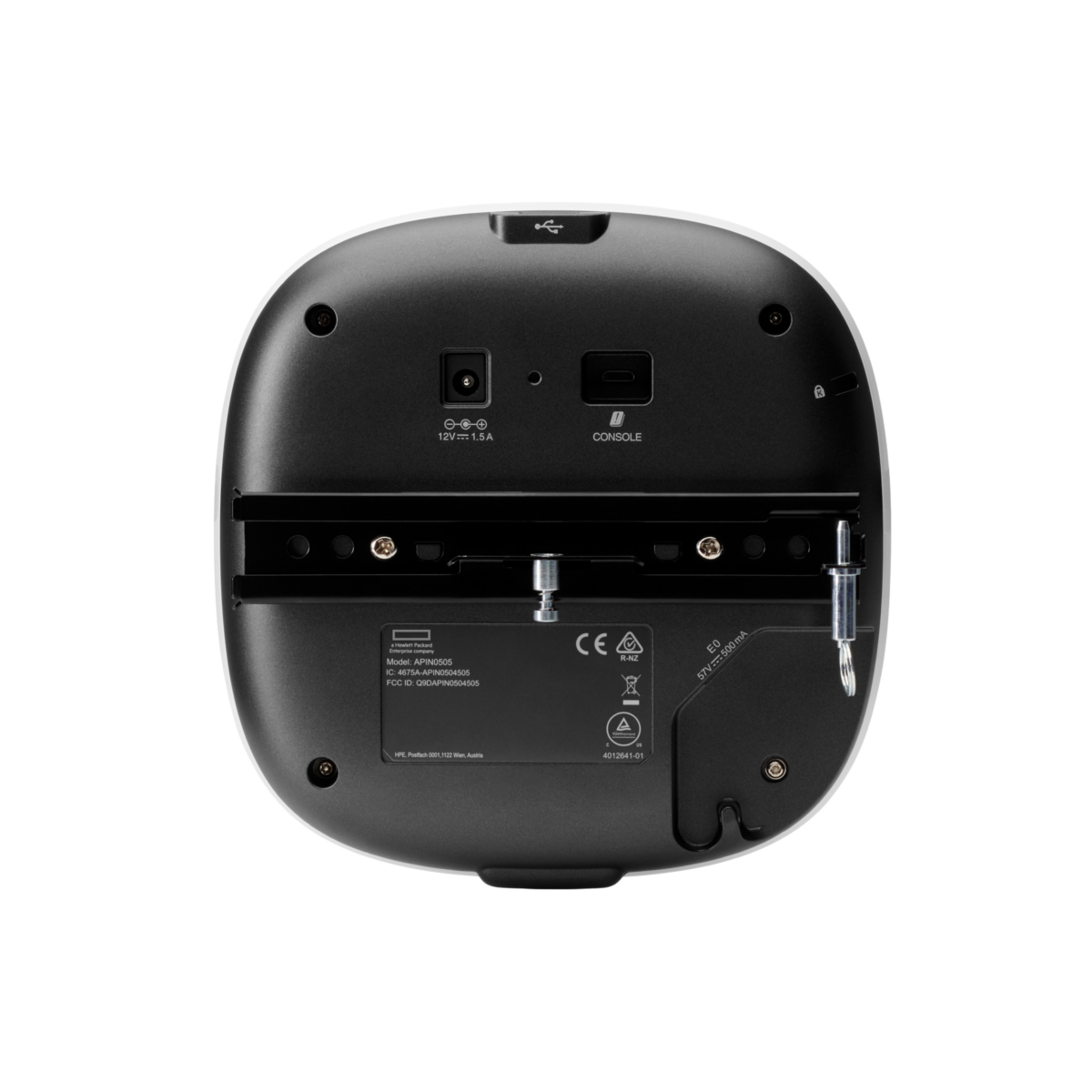

Aruba R2H29A AP-505 802.11ax 1.77 Gbit/s Wireless Access Point WIFI 6

The Aruba R2H29A AP-505 is a high-performance, enterprise-grade wireless access point designed to deliver fast, reliable, and secure connectivity in modern network environments. Powered by the latest Wi-Fi 6 (802.11ax) technology, the AP-505 enhances network efficiency and supports higher device density, making it ideal for offices, schools, healthcare facilities, and other demanding enterprise spaces.

With a maximum data rate of up to 1.77 Gbps, the AP-505 ensures superior performance for both indoor and medium-density deployments. Integrated with Aruba’s advanced security features and AI-powered management through Aruba Central or Aruba AirWave, it simplifies network operations while improving user experience.

Key Features

• Wi-Fi 6 (802.11ax) Technology: Delivers higher data rates, improved capacity, and better performance in high-density environments.

• Dual-Radio Performance: Supports simultaneous 2.4 GHz and 5 GHz operation for optimal coverage and throughput.

• High Throughput: Achieves combined data rates up to 1.77 Gbps.

• Client Optimization: OFDMA, MU-MIMO, and Target Wake Time (TWT) enhance efficiency and battery life for connected devices.

• Secure Networking: Integrated WPA3 and enhanced encryption to protect sensitive data.

• Flexible Deployment: Can be deployed in controller-managed or controllerless (Instant) mode.

• IoT Integration: Includes Bluetooth 5.0 and Zigbee radios for IoT connectivity.

• Energy Efficient: Supports 802.3af/802.3at Power over Ethernet (PoE) for simplified installation.

Technical Specifications

General:

• Model: Aruba R2H29A AP-505

• Form Factor: Indoor, ceiling- or wall-mounted

Wireless Standards:

• IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)

• 2×2:2 MIMO on both 2.4 GHz and 5 GHz bands

Data Rates:

• Up to 1.77 Gbps (combined)

  • 5 GHz: up to 1.2 Gbps

  • 2.4 GHz: up to 574 Mbps

Radio & Antenna:

• Integrated omnidirectional antennas

• Dual radios (2.4 GHz & 5 GHz)

• MU-MIMO and OFDMA support

Security:

• WPA2 and WPA3 Enterprise/Personal

• Secure boot and TPM for hardware-level protection

Connectivity:

• 1x 10/100/1000BASE-T Ethernet port with PoE (802.3af/at)

• Bluetooth 5.0 and Zigbee for IoT device connectivity

Power & Environmental:

• Power Consumption: Up to 12.6 W (with PoE)

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

Management & Control:

• Aruba Central (cloud-managed) or Aruba AirWave (on-premise)

• Supports controller-based or Instant (controllerless) modes

Physical Dimensions:

• Size: 160 mm x 160 mm x 37 mm (6.3 in x 6.3 in x 1.45 in)

• Weight: 500 g (1.1 lbs)
