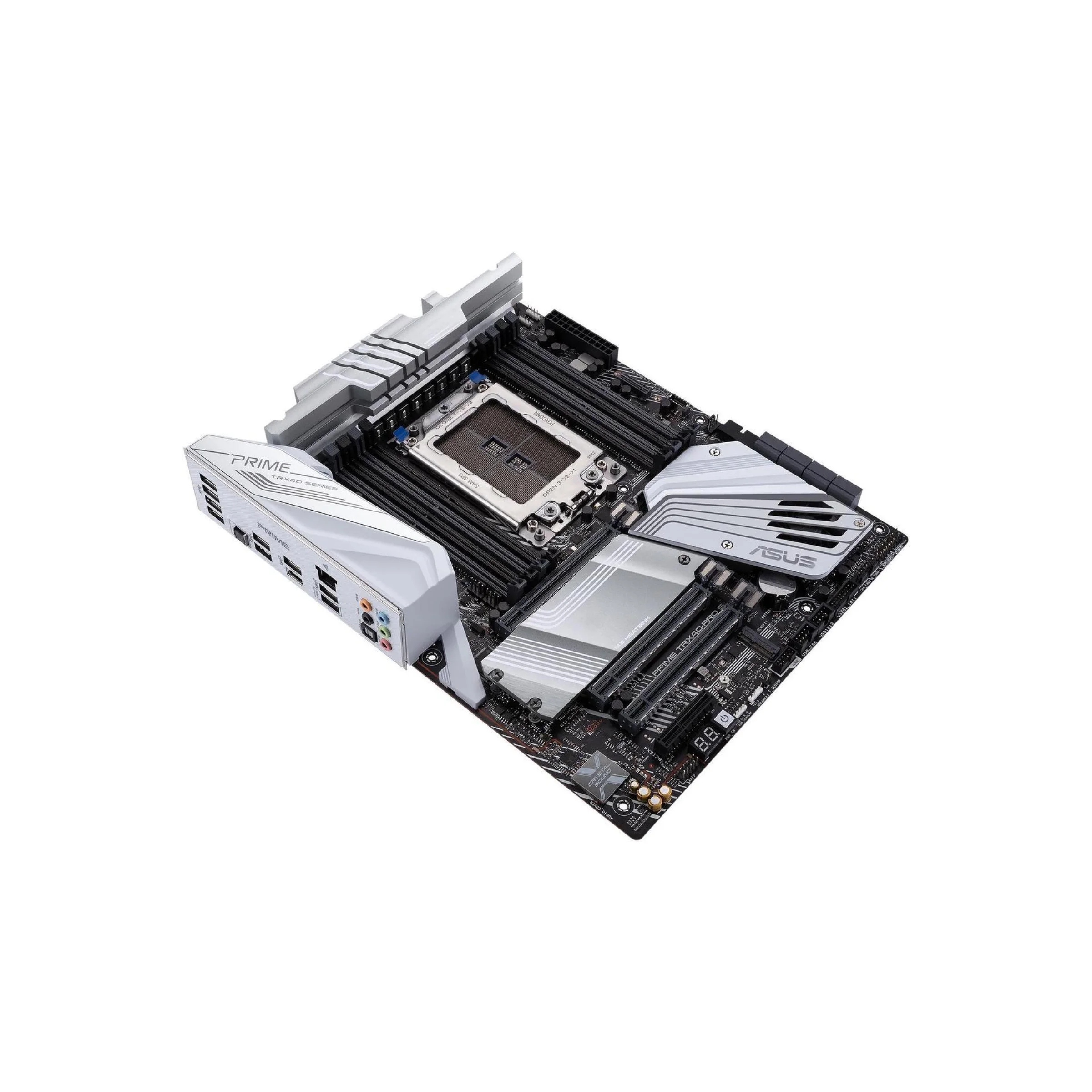

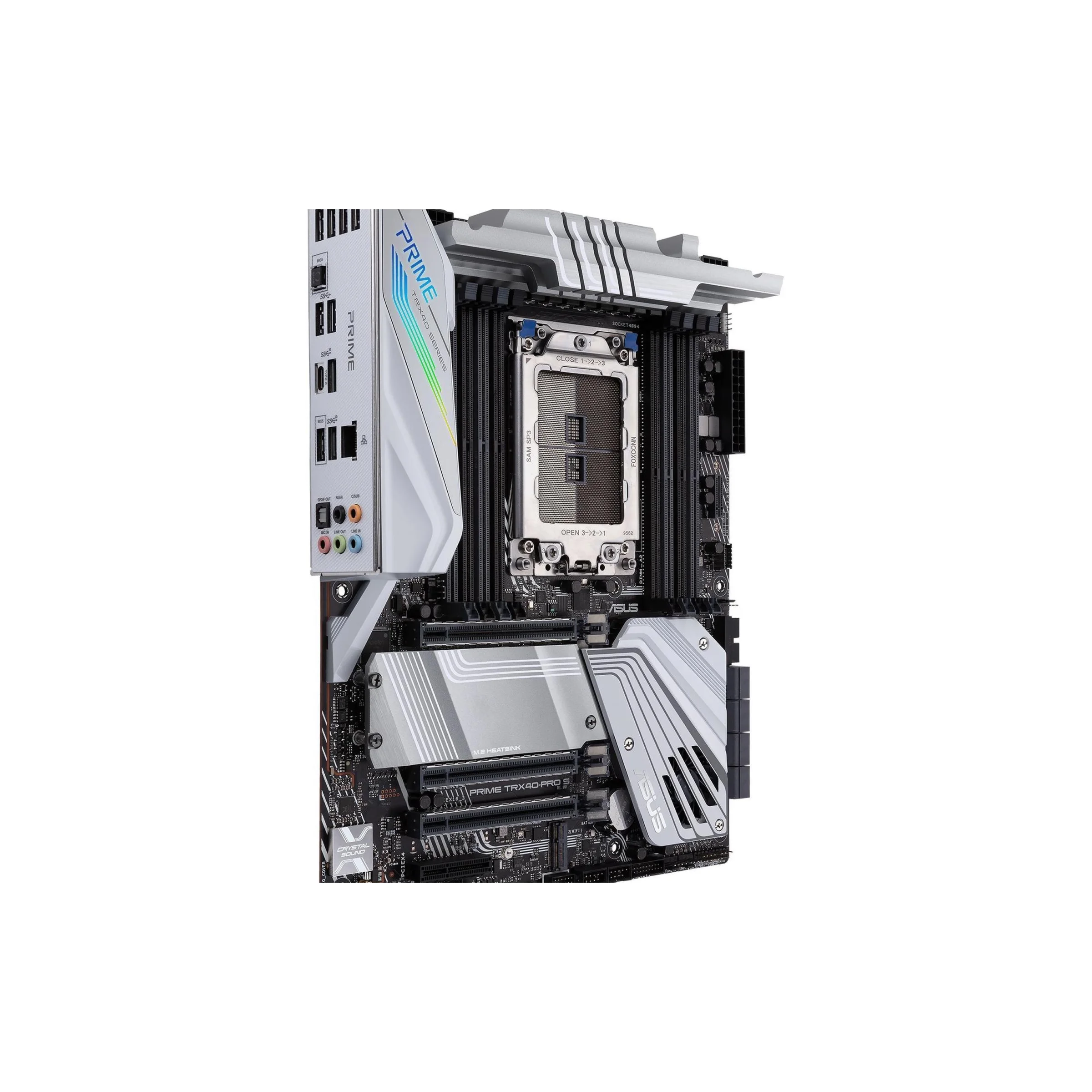

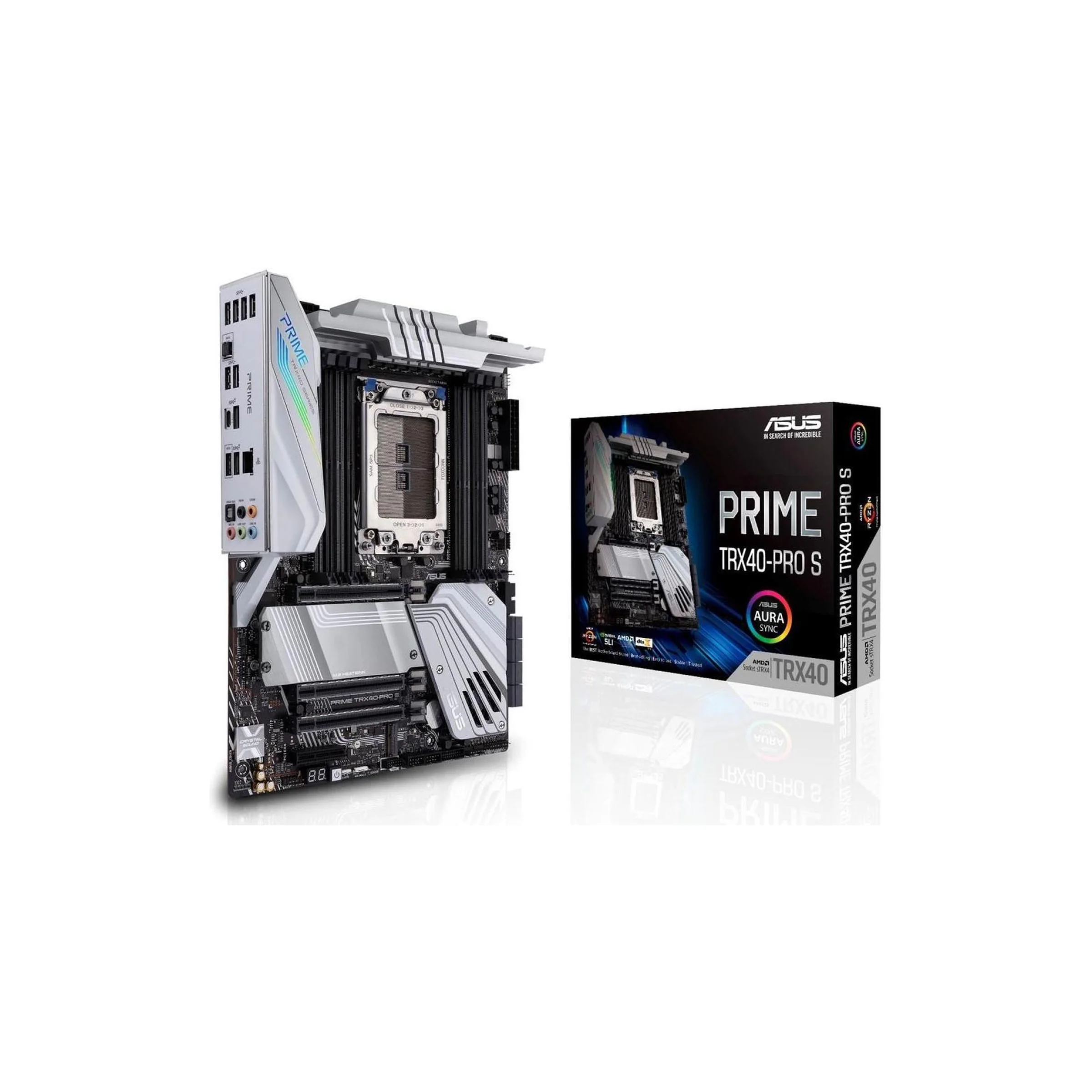

ASUS Prime TRX40-PRO S sTRX4 AMD Motherboard

The ASUS PRIME TRX40-PRO S is a high-performance motherboard designed for enthusiasts, content creators, and professionals seeking robust power, excellent connectivity, and a wide range of advanced features. Built around the AMD TRX40 chipset, this motherboard supports AMD’s powerful 3rd Gen Ryzen Threadripper processors, offering exceptional performance for demanding applications such as 3D rendering, video editing, simulation, and more.

Key Features & Specifications:

1. Socket & Processor Compatibility:

• Socket TRX4: Supports AMD’s 3rd Gen Ryzen Threadripper processors.
• High-Core Count CPUs: Ideal for users with high-performance needs, including processors with up to 64 cores, making it suitable for multi-threaded workloads like rendering, gaming, and other compute-heavy tasks.
• PCIe 4.0 Support: Full support for PCIe 4.0, which offers twice the bandwidth of PCIe 3.0 for compatible devices, ensuring faster data transfer and improved performance with GPUs, SSDs, and more.

2. Memory Support:

• 8 DIMM Slots: Up to 256GB of Quad-Channel DDR4 memory (depending on CPU).
• Overclocking: Supports DDR4 memory overclocking up to 4600 MHz+ (with compatible modules).
• ECC (Error-Correcting Code): Provides added reliability for professional workloads, preventing data corruption in mission-critical tasks.

3. PCIe 4.0 & Expansion Slots:

• 3 x PCIe 4.0 x16 slots (running at x16, x16, and x8 configurations) for high-performance graphics cards and additional expansion cards.
• PCIe 4.0 provides high bandwidth for multi-GPU setups, storage devices, and other high-performance expansion cards.
• Support for AMD CrossFire and NVIDIA SLI multi-GPU configurations for users looking to maximize graphics performance.

4. Storage Options:

• 8 x SATA 6Gbps Ports: Standard connectivity for traditional HDDs or SATA-based SSDs.
• 3 x M.2 Slots: Two PCIe 4.0 x4 M.2 slots and one PCIe 3.0 x4 M.2 slot, providing ultra-fast storage options with support for NVMe SSDs.
• RAID Support: Includes RAID 0, 1, 5, and 10 for the ability to configure redundancy, speed, and storage expansion.

5. Networking & Connectivity:

• Dual Ethernet: Equipped with 2.5G Ethernet for faster, high-speed networking, and a Gigabit Ethernet port for stable, reliable connections for gaming, streaming, or heavy data transfer tasks.
• Wi-Fi & Bluetooth: The PRO S model is equipped with Wi-Fi 6 (802.11ax), delivering higher speeds and better efficiency for wireless connections. Additionally, it supports Bluetooth 5.0, ensuring compatibility with a wide range of wireless peripherals.
• USB Ports: Features USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports, including both Type-A and Type-C for versatility and future-proofing for USB devices.

6. Power Delivery & VRM Design:

• Robust Power Design: With a 12+2 DrMOS VRM (Voltage Regulator Module) configuration, the PRIME TRX40-PRO S provides clean, stable power to the CPU, supporting the demanding power needs of high-core-count Threadripper processors.
• ProCool II Power Connectors: Provides better power delivery to the motherboard and CPU, ensuring stability and longevity during overclocking and heavy workloads.
• Active Cooling for VRM: The motherboard is equipped with heatsinks on the power delivery components and an active cooling fan for improved thermal management.

7. Cooling and Thermal Solutions:

• Comprehensive Cooling Options: Includes multiple fan headers for CPU and chassis fans, as well as dedicated headers for AIO (All-in-One) coolers and liquid cooling systems.
• Fan Xpert 4: ASUS’s advanced fan control software that allows users to fine-tune fan speeds based on temperature, ensuring quieter operation and optimal cooling performance.
• Dedicated M.2 Heatsinks: The M.2 drives are equipped with heatsinks to reduce thermal throttling, ensuring consistent performance in high-intensity tasks.

8. Audio:

• Realtek S1220A Codec: The integrated 8-channel HD audio solution provides clear, high-fidelity sound with a high impedance for headsets and speakers.
• Premium Capacitors: Used in the audio circuitry to ensure minimal interference, delivering enhanced audio quality for professional audio applications and gaming.

9. BIOS & Firmware:

• UEFI BIOS: ASUS’s user-friendly, graphical UEFI BIOS provides easy-to-navigate options for configuring system settings, overclocking, and monitoring hardware.
• ASUS EZ Update: Easy firmware and driver updates directly from within the BIOS environment.
• Overclocking Support: Advanced options for CPU, RAM, and GPU tuning to extract the maximum performance from your components.
